Custom Loose Lined Tantalum Heat Exchanger: The Premium Choice For Severe Corrosion Heat Transfer Applications

The custom loose lined tantalum heat exchanger represents the highest standard of corrosion-resistant heat exchange technology.

In highly corrosive industrial environments, selecting the right heat exchanger material is a critical engineering decision. When standard metals and even high-performance alloys fail to meet corrosion, purity, and longevity requirements, tantalum becomes the material of choice. Among various tantalum-based designs, the custom loose lined tantalum heat exchanger offers an optimal balance of performance, reliability, flexibility, and cost efficiency.

This article provides a comprehensive technical overview of custom loose lined tantalum heat exchangers, covering structural design, material behavior, heat transfer performance, customization strategies, application scenarios, quality control, installation guidance, and operational best practices. It is intended for engineers, procurement managers, and technical decision-makers seeking reliable solutions for extreme corrosion heat exchange systems.

A custom loose lined tantalum heat exchanger is a heat transfer device in which tantalum is used as a corrosion-resistant lining material, mechanically fitted inside a structural shell made from carbon steel or stainless steel. Unlike bonded or welded linings, the loose lined structure allows the tantalum liner to move independently under thermal and mechanical stress.

The "custom" aspect means the exchanger is designed according to specific operating parameters such as:

• Media composition
• Temperature range
• Pressure rating
• Flow rate
• Installation space
• Industry standards

This combination of customization and loose lining design ensures both optimal corrosion resistance and mechanical reliability.

Tantalum is widely recognized for its extraordinary corrosion resistance, primarily due to its naturally forming tantalum oxide passive layer. This layer is highly stable and self-repairing, even when mechanically damaged.

Tantalum demonstrates excellent resistance to:

• Hydrochloric acid (all concentrations, including boiling)
• Nitric acid
• Sulfuric acid
• Phosphoric acid
• Aqua regia
• Mixed acid systems
• Chloride-containing oxidizing environments

Because of these properties, tantalum is often the only practical metallic material for certain acid processes. A custom loose lined tantalum heat exchanger allows these benefits to be fully utilized without the excessive cost of solid tantalum construction.

Independent Thermal Expansion

Tantalum and steel have different thermal expansion coefficients. A loose lined structure allows each material to expand independently, preventing internal stress buildup that could lead to cracking or deformation.

Enhanced Mechanical Stability

The liner is supported by the shell but not rigidly fixed, reducing the risk of fatigue failure under cyclic temperature and pressure conditions.

Longer Service Life

Stress-free lining conditions significantly extend equipment lifespan, especially in batch or fluctuating processes.

Easier Maintenance and Replacement

If the liner is damaged, partial or full replacement is often possible without replacing the entire shell, reducing downtime and cost.

Improved Process Reliability

The liner remains dimensionally stable, ensuring consistent flow patterns and heat transfer efficiency over long-term operation.

These advantages make the custom loose lined tantalum heat exchanger superior to bonded or coated alternatives in severe service conditions.

A custom loose lined tantalum heat exchanger can be manufactured in various structural formats depending on process requirements:

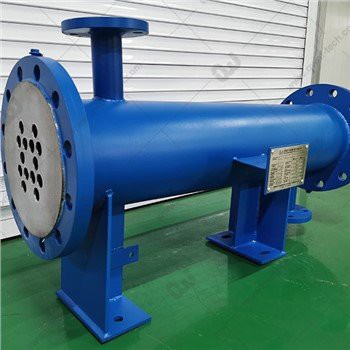

Shell and Tube Heat Exchangers

The most common configuration, suitable for high pressure and high temperature operations. Tantalum linings are applied to tubes, tube sheets, channel covers, and heads.

Plate Heat Exchangers

Used for compact systems with lower pressure requirements. Tantalum-lined plates provide excellent corrosion resistance and high heat transfer coefficients.

Coil Heat Exchangers

Ideal for reactors and storage tanks requiring internal or external temperature control.

Spiral Heat Exchangers

Used for viscous or fouling fluids, offering self-cleaning flow paths.

Each configuration can be fully customized to meet specific thermal and mechanical demands.

Although tantalum's thermal conductivity is lower than copper, its performance remains highly stable over long periods due to its corrosion resistance.

• Key performance benefits include:
• Stable heat transfer coefficient
• No corrosion-related performance degradation
• Smooth internal surfaces
• Minimal fouling tendency
• Consistent thermal efficiency

In a custom loose lined tantalum heat exchanger, the liner thickness is optimized to balance corrosion protection and thermal resistance, ensuring efficient energy transfer.

Chemical Processing Industry

Custom loose lined tantalum heat exchangers are widely used for:

• Acid heating and cooling systems
• Acid concentration and dilution units
• Reaction temperature control
• Waste acid heat recovery

Pharmaceutical Industry

They are used in processes requiring both corrosion resistance and high purity, such as:

• Acidic intermediate processing
• Solvent temperature control
• Sterile process heat exchange

Metallurgical Industry

Applications include:

• Pickling acid regeneration systems
• Acidic effluent heat recovery
• Electrolyte temperature regulation

Electronic and Semiconductor Industry

Tantalum's purity and corrosion resistance make it ideal for:

• Ultra-pure chemical temperature control
• Etching solution heating and cooling

In each of these fields, equipment reliability directly affects production stability and product quality.

A custom loose lined tantalum heat exchanger can be tailored in nearly every aspect:

• Shell material and thickness
• Tantalum grade selection
• Liner thickness
• Tube diameter and length
• Tube arrangement pattern
• Baffle structure
• Nozzle orientation
• Flange standard
• Design pressure and temperature
• Surface roughness requirement

This level of customization ensures precise adaptation to real operating conditions, avoiding unnecessary overdesign or underperformance.

High-quality manufacturing is essential for tantalum equipment.

The production of a custom loose lined tantalum heat exchanger typically includes:

• Material inspection and certification
• Precision forming of tantalum components
• Welding under controlled atmosphere when required
• Mechanical liner fitting and expansion
• Dimensional alignment control
• Multi-stage inspection
• Final assembly and sealing

Strict cleanliness control is maintained to prevent contamination of tantalum surfaces.

To ensure operational safety and reliability, each unit undergoes:

• Helium leak detection
• Hydrostatic pressure testing
• Eddy current testing
• Ultrasonic thickness testing
• Visual inspection
• Dimensional verification

These procedures ensure the liner integrity and overall mechanical strength.

Correct installation is critical for long-term performance:

• Avoid direct impact on tantalum surfaces
• Use non-metallic lifting slings
• Ensure precise flange alignment
• Apply uniform bolt torque
• Use chemically compatible gaskets
• Prevent foreign particle contamination

Professional installation significantly extends the service life of the equipment.

For optimal performance of a custom loose lined tantalum heat exchanger:

• Avoid rapid temperature shock when possible
• Maintain stable operating pressure
• Monitor pressure drop trends
• Track heat transfer efficiency
• Schedule periodic inspections

These practices help identify early signs of fouling or abnormal conditions.

Cleaning should be performed using:

• Mild chemical cleaning solutions
• Low-pressure water flushing
• Soft non-metallic brushes if needed

Abrasive mechanical cleaning should be avoided to protect the tantalum oxide layer.

Compared to titanium-lined heat exchangers:

• Tantalum offers superior resistance to strong acids.

Compared to PTFE-lined heat exchangers:

• Tantalum tolerates much higher temperatures and pressures.

Compared to solid tantalum heat exchangers:

• Loose lined design significantly reduces cost while maintaining performance.

This makes the custom loose lined tantalum heat exchanger a balanced, high-end engineering solution.

When specifying a custom loose lined tantalum heat exchanger, engineers should clearly define:

Media composition and concentration

Operating temperature range

Pressure conditions

Flow velocity

Allowable pressure drop

Installation environment

Clear technical data ensures accurate and cost-effective design.

Although tantalum is a premium material, a custom loose lined tantalum heat exchanger offers:

• Reduced corrosion-related failures
• Lower maintenance frequency
• Longer service life
• Higher operational stability
• Lower total lifecycle cost

For many corrosive processes, it is the most economical long-term solution.

Is tantalum safe for long-term acid exposure?

Yes. Tantalum is one of the most stable metals in acidic environments.

Can the liner be customized for partial protection?

Yes. Only wetted areas need tantalum lining, reducing cost.

Is quality certification available?

Professional manufacturers provide full material traceability and inspection documentation.

The custom loose lined tantalum heat exchanger represents the highest standard of corrosion-resistant heat exchange technology. By combining tantalum's exceptional chemical stability with a mechanically flexible lining structure, it delivers unmatched reliability in the most aggressive industrial environments.

For chemical processing, pharmaceutical manufacturing, metallurgical operations, and high-purity applications, a custom loose lined tantalum heat exchanger is not just equipment-it is a critical safeguard for process stability, product quality, and long-term operational success.

If your process involves highly corrosive media and demands absolute reliability, investing in a custom loose lined tantalum heat exchanger is a technically sound and economically wise decision.
